Reference Publication: Parker, D., Fairey, P., McCluney, R., Gueymard, C., Stedman, T., McIlvaine, J., "Rebuilding For Efficiency: Improving the Energy Use of Reconstructed Residences in South Florida", Prepared for U.S. Department of Energy, Florida Energy Office, and Florida Power & Light Company, FSEC-CR-562-92, December 1992. Disclaimer: The views and opinions expressed in this article are solely those of the authors and are not intended to represent the views and opinions of the Florida Solar Energy Center. |
REBUILDING
FOR EFFICIENCY:
Improving the Energy Use of Reconstructed
Residences in South Florida
Appendix
F

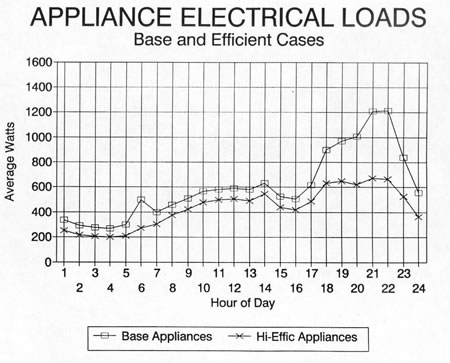

Appliance and Internal Load Profiles
Internal
Load Schedule for DOE 2.1D Simulation
(All Loads in Watt-Hours)
Hour |
Occupts |
Lights |
Refriger. |
Range |
Dryer |
Washer |
Dishwash |
Other |
Total |
1 |
161 |
12 |
160 |
10 |
40 |
3 |
6 |
104 |
453 |
2 |
161 |
0 |
155 |
10 |
20 |
2 |
2 |
101 |
429 |
3 |
161 |
0 |
150 |
10 |
10 |
2 |
2 |
101 |
424 |
4 |
161 |
0 |
145 |
10 |
10 |
2 |
1 |
101 |
418 |
5 |
161 |
30 |
145 |
10 |
10 |
3 |
1 |
101 |
448 |
6 |
190 |
210 |
145 |
20 |
15 |
3 |
2 |
103 |
670 |
7 |
190 |
30 |
150 |
30 |
40 |
5 |
6 |
138 |
544 |
8 |
190 |
12 |
150 |
50 |
75 |
10 |
9 |
154 |
565 |
9 |
94 |
12 |
160 |
60 |
100 |
19 |
12 |
146 |
484 |
10 |
94 |
12 |
160 |
60 |
160 |
21 |
20 |
133 |
479 |
11 |
94 |
12 |
160 |
60 |
190 |
24 |
16 |
120 |
462 |
12 |
94 |
12 |
160 |
70 |
200 |
20 |
14 |
114 |
464 |
13 |
94 |
12 |
175 |
80 |
175 |
18 |
10 |
112 |
483 |
14 |
94 |
12 |
170 |
60 |
170 |
18 |
95 |
109 |
540 |
15 |
94 |
12 |
170 |
50 |
160 |
15 |
9 |
109 |
444 |
16 |
161 |
12 |
165 |
70 |
125 |
14 |
10 |
109 |
527 |
17 |
171 |
66 |
175 |
100 |
125 |
13 |
11 |
128 |
651 |
18 |
190 |
228 |
190 |
175 |
120 |
14 |
12 |
159 |
954 |
19 |
190 |
300 |
200 |
150 |
115 |
14 |
19 |
172 |
1031 |
20 |
190 |
378 |
195 |
75 |
110 |
13 |
20 |
215 |
1073 |
21 |
190 |
588 |
190 |
50 |
125 |
14 |
26 |
217 |
1261 |
22 |
190 |
600 |
185 |
40 |
140 |
15 |
22 |
209 |
1246 |
23 |
161 |
300 |
180 |
30 |
130 |
11 |
20 |
167 |
858 |
24 |
161 |
150 |
170 |
20 |
75 |
6 |
16 |
119 |
636 |
Total |
3637 |
3000 |
4005 |
1300 |
2440 |
279 |
361 |
3241 |
15544 |
Peak |
190 |
600 |
200 |
175 |
200 |
24 |
95 |
217 |
1261 |
Average |
152 |
125 |
167 |
54 |
102 |
12 |
15 |
135 |
648 |
Tot.
kWh |
1328 |
1095 |
1462 |
474 |
891 |
102 |
132 |
1183 |
5674 |
