Reference Publication: McIlvaine, J., Mallette, M., Parker, D., Callahan, M., Lapujade, P., Floyd, D., Schrum, L., Stedman, T., Cumming, B., Maxwell, L., Salamon, M., "Energy-Efficient Design for Florida Educational Facilities," Prepared for the Florida Department of Education, Tallahassee, FL., September, 2000. Disclaimer: The views and opinions expressed in this article are solely those of the authors and are not intended to represent the views and opinions of the Florida Solar Energy Center. |
Energy-Efficient Design for Florida Educational Facilities
Janet McIlvaine, Michele Mallette, Danny Parker, Michael
Callahan, Philippe Lapujade, David Floyd, Lynn Schrum,
Ted Stedman, Brian Cumming, Larry Maxwell, Milt Salamon
Florida
Solar Energy Center (FSEC), R. Douglas Stone Associates, Inc.,
Spacecoast Architects, Technical Editor
FSEC-CR-1682-00
Table 1. Economic and Energy Analysis of Single Energy Conservation Measures - Classroom Building.
Run # |
Units | Cost/ unit | First Cost | Oper andMaint | Life of ECM | Life Cycle Cost | Annual EnergyCost | Annual EnergySavings | Life CycleSavings | Net Savings | Energy UseIntensity | Estimated CoolingCapacity | |
Formula | sq. ft. unlessnoted | FC | O&M | LCC = (FC) (P2) +(FC) (P3) (OM) | Electric cost+ Gas cost | Base Case energy cost - ECM energy cost | LCS = (Annual Energy Savings) (P1) | LCS - LCC | |||||
Energy Conservation Measure | $ | $ | year | $ | $ | $ | $ | $ | kBTU/sqft | Tons | |||
Classroom Bldg Base Case | - | - | - | - | - | 40 | - | $15,481 | - | $0 | - | 44 | 46 |
Single pane reflective glazing | 11 | 2304 | $3 | $6,600 | 0 | 40 | $6,805 | $15,092 | $389 | $22,499 | $15,695 | 43 | 45 |
Double pane clear glazing | 8 | 2304 | $2 | $5,300 | 0 | 40 | $5,464 | $15,495 | $-14 | $-822 | $-6,287 | 44 | 45 |
Double pane reflective glazing | 13 | 2304 | $6 | $14,867 | 0 | 40 | $15,328 | $14,462 | $1,019 | $58,910 | $43,582 | 41 | 42 |
Double pane spectrally selective glazing | 15 | 2304 | $4 | $9,600 | 0 | 40 | $9,896 | $14,409 | $1,072 | $61,961 | $52,063 | 40 | 41 |
3.5' Window shade | 57 | 385 | $5 | $1,925 | 0 | 40 | $1,985 | $15,380 | $101 | $5,810 | $3,825 | 43 | 44 |
2' Window shade | 58 | 220 | $5 | $1,100 | 0 | 40 | $1,134 | $15,450 | $31 | $1,793 | $659 | 43 | 46 |
2' Light shelf | 59 | 220 | $5 | $1,100 | 0 | 40 | $1,134 | $15,422 | $59 | $3,402 | $2,267 | 43 | 45 |
Covered walkway | 56 | 880 | $5 | $4,400 | 0 | 40 | $4,536 | $14,951 | $530 | $30,611 | $26,074 | 42 | 44 |
Reflective roof | 20 | 14835 | $0 | $0 | 0 | 20 | $0 | $14,941 | $540 | $12,641 | $12,641 | 42 | 46 |
Reflective wall | 21 | 6816 | $0 | $0 | 0 | 20 | $0 | $15389 | $92 | $2,151 | $2,151 | 43 | 46 |
2' overhang NSEW | 22 | 1152 | $5 | $5,760 | 0 | 40 | $5,939 | $15,442 | $39 | $2,232 | $-3,706 | 43 | 46 |
4' overhang NSEW | 23 | 2336 | $5 | $11,680 | 0 | 40 | $12,042 | $15,351 | $130 | $7,538 | $-4,504 | 43 | 45 |
Shade trees | 24 | 8 trees | $200 | $1,600 | 0 | 30 | $1,650 | $15,313 | $168 | $6,558 | $4,909 | 43 | 46 |
R-11 wall insulation | 25 | 6816 | $.31 | $2,113 | 0 | 40 | $2,178 | $15,547 | $-66 | $-3,808 | $5,987 | 44 | 46 |
R-19 roof insulation | 26 | 14835 | $.31 | $4,599 | 0 | 40 | $4,741 | $15,576 | $-96 | $-5,520 | $-10,261 | 44 | 49 |
R-30 roof insulation | 28 | 14835 | $.31 | $4,599 | 0 | 40 | $4,741 | $15,540 | $241 | $13,925 | $9,183 | 43 | 45 |
Variable speed circulation pump for chiller | 39 | 1 pump | $3000 | $3,000 | 0 | 15 | $3,093 | $15,237 | $244 | $4,076 | $983 | 43 | 47 |
Non-optimal orientation | 1 | 1 | $0 | $0 | 0 | 40 | $0 | $15,726 | $-245 | $-14,156 | $-14,156 | 45 | 45 |
F40, T12, magnetic ballast, open diffuser, parabolic troffer with reflector | 30 | 400 fixts | $15 | $15 | 0 | 15 | $6,186 | $16,058 | $-577 | $-9,629 | $-15815 | 45 | 47 |
F34, T12, magnetic ballast, open diffuser, parabolic troffer with reflector | 31 | 400 fixts | $15 | $6,000 | 0 | 15 | $6,186 | $15,383 | $98 | $1,636 | $-4,550 | 43 | 46 |
F34, T12, magnetic ballast, open diffuser, parabolic troffer | 32 | 400 fixts | $8 | $6,000 | 0 | 15 | $3,299 | $14,330 | $1,151 | $19,218 | $15,919 | 40 | 45 |
F32, T8, electronic ballast, open diffuser, parabolic troffer | 33 | 400 fixts | $24 | $3,200 | 0 | 15 | $10,001 | $13,854 | $1,627 | $27,167 | $17,166 | 39 | 44 |
LED exit signs | 34 | 12 signs | $40 | $9,700 | 0 | 40 | $495 | $15,291 | $190 | $10,991 | $10,496 | 43 | 46 |
Occupancy sensors | 61 | 12 snsrs | $60 | $480 | 0 | 15 | $742 | $14,492 | $989 | $16,515 | $15,773 | 41 | 45 |
Screw chiller | 36 | 1 chlr | $2400 | $720 | 0 | 15 | $2,474 | $12,686 | $2,795 | $46,674 | $44,200 | 35 | 47 |
Enthalpy Economizer (163) | 49 | 1 ecnzr | $2400 | $2,400 | 0 | 15 | $2,474 | $15,462 | $19 | $316 | $-2,158 | 43 | 46 |
Optimal Start (Energy Management System | 48 | 1 EMS | $500 | $5,000 | 0 | 15 | $5,155 | $15,019 | $462 | $7,715 | $2,560 | 41 | 46 |
Enthalpy Recovery System (TERS) for 5 cfm | 46 | per ton (47) | $400 | $-18,800 | 0.05 | 15 | $-19,904 | $16,484 | $-1,367 | $-22,823 | $-2,919 | 42 | 45 |
Enthalpy Recovery System (TERS) for 15 cfm [Compared to ventilation rate = 15 cfm/person] | 47 | per ton (47) | $400 | $-18,800 | 0.5 | 15 | $19,904 | $17,165 | $ 94 | $1,566 | $21,470 | 47 | 59 |
Table 2. Economic and Energy Analysis of Single Energy Conservation Measures - Administration Building
Run # | Units | Cost/ unit | First Cost | Oper andMaint | Life of ECM | Life Cycle Cost | Annual EnergyCost | Annual EnergySavings | Life Cycle Savings | Net Savings | Energy UseIntensity | Estimated CoolingCapacity | |
Formula | sq. ft. unlessnoted | FC | O&M | LCC = (FC) (P2) +(FC) (P3) (OM) | Electric cost+ Gas cost | Base Case energy cost - ECM energy cost | LCS = (Annual EnergySavings) (P1) | LCS - LCC | |||||
Energy Conservation Measure | $ | $ | year | $ | $ | $ | $ | $ | kBTU/sqft | Tons | |||
Administration Bldg Base Case | - | - | - | - | - | 40 | $0 | $9,735 | - | $0 | - | 42 | 25 |
Single pane reflective glazing | 11 | 629.6 | $3 | $1,804 | 0 | 40 | $1,859 | $9,067 | $668 | $38,587 | $36,727 | 40 | 23 |
Double pane clear glazing | 8 | 629.6 | $2 | $1,448 | 0 | 40 | $1,493 | $9,743 | $-8 | $-477 | $-1,971 | 42 | 24 |
Double pane reflective glazing | 13 | 629.6 | $6 | $4,063 | 0 | 40 | $4,189 | $9,098 | $637 | $36,821 | $32,632 | 40 | 22 |
Double pane spectrally selective glazing | 15 | 629.6 | $4 | $2,623 | 0 | 40 | $2,708 | $9,014 | $721 | $41,651 | $38,946 | 40 | 22 |
Reflective roof | 20 | 10017 | $0 | $0 | 0 | 20 | $0 | $9,300 | $435 | $10,185 | $10,185 | 41 | 25 |
Reflective wall | 21 | 5328 | $0 | $0 | 0 | 20 | $0 | $9,664 | $71 | $1,654 | $1,654 | 42 | 25 |
2' overhang NSEW | 22 | 904 | $5 | $4,520 | 0 | 40 | $4,660 | $9,710 | $24 | $1,411 | $-3,249 | 29 | 25 |
4' overhang NSEW | 23 | 5632 | $5 | $28,160 | 0 | 40 | $29,033 | $9,653 | $82 | $4,751 | $-24,282 | 28 | 24 |
Shade trees | 24 | 8 trees | $200 | $1,600 | 0 | 30 | $1,650 | $9,564 | $171 | $6,673 | $5,024 | 42 | 25 |
R-11 wall insulation | 25 | 5328 | $.31 | $1,652 | 0 | 40 | $1,703 | $9,790 | $-55 | $-3,182 | $-4,885 | 42 | 25 |
R-19 roof insulation | 26 | 10017 | $.31 | $3,105 | 0 | 40 | $3,202 | - | $9,735 | $562,671 | $559,469 | 43 | 26 |
R-30 roof insulation | 28 | 10017 | $.31 | $3,105 | 0 | 40 | $3,202 | $9,508 | $227 | $13,118 | $9,916 | 42 | 24 |
Variable speed circulation pump for chiller | 39 | 1 | $3000 | $3,000 | 0 | 15 | $3,093 | $9,634 | $101 | $1,688 | $-1,405 | 42 | 25 |
Non-optimal orientation | 1 | 1 | $0 | $0 | 0 | 40 | $0 | $9,937 | $-202 | $-11,704 | $-11,704 | 44 | 24 |
F40, T12, magnetic ballast, open diffuser, parabolic troffer with reflector | 30 | 270 fixts | $15 | $4,050 | 0 | 15 | $4,176 | $10,132 | $-398 | $-6,640 | $-10,816 | 44 | 25 |
F34, T12, magnetic ballast, open diffuser, parabolic troffer with reflector | 31 | 270 fixts | $15 | $4,050 | 0 | 15 | $4,176 | $9,668 | $67 | $1,118 | $-3,057 | 42 | 25 |
F34, T12, magnetic ballast, open diffuser, parabolic troffer | 32 | 270 fixts | $8 | $2,160 | 0 | 15 | $2,227 | $8,950 | $78 | $13,113 | $10,886 | 39 | 24 |
F32, T8, electronic ballast, open diffuser, parabolic troffer | 33 | 270 fixts | $24 | $6,548 | 0 | 15 | $6,750 | $8,624 | $1,110 | $18,544 | $11,794 | 38 | 23 |
LED exit signs | 34 | 12 signs | $40 | $480 | 0 | 40 | $495 | $9,668 | $67 | $3,871 | $3,376 | 42 | 25 |
Occupancy sensors | 61 | 12 snsrs | $60 | $720 | 0 | 15 | $742 | $9,338 | $397 | $6,632 | $5,890 | 41 | 25 |
Screw chiller | 36 | 1 chlr | $2400 | $2,400 | 0 | 15 | $2,474 | $8,656 | $1,079 | $18,016 | $15,541 | 37 | 25 |
Enthalpy Economizer | 49 | 1 ecnzr | $2400 | $5,000 | 0 | 15 | $2,474 | $9,715 | $20 | $327 | $-2147 | 42 | 25 |
Optimal Start (Energy Management System | 48 | 1 EMS | $5000 | $5,000 | 0 | 15 | $5,155 | $9,627 | $108 | $1,803 | $-3,352 | 42 | 25 |
Enthalpy Recovery System (TERS) for 5 cfm | 46 | per ton (25) | $400 | $-10,000 | 0.05 | 15 | $-10,587 | $9,583 | $152 | $2,538 | $15,125 | 42 | 24 |
Enthalpy Recovery System (TERS) for 15 cfm [Compared to ventilation rate = 15 cfm/person] | 47 | per ton (25) | $400 | $-10,000 | 0.5 | 15 | $10,587 | $10,124 | $288 | $4,815 | $15,402 | 43 | 28 |
Table 3. Economic and Energy Analysis of Single Energy Conservation Measures - Multi Purpose Building
Run # | Units | Cost/ unit | First Cost | Oper andMaint | Life of ECM | Life Cycle Cost | Annual EnergyCost | Annual EnergySavings | Life Cycle Savings | Net Savings | Energy UseIntensity | Estimated CoolingCapacity | |
Formula | sq. ft. unlessnoted | FC | O&M | LCC = (FC) (P2) +(FC) (P3) (OM) | Electric cost+ Gas cost | Base Case energy cost - ECM energy cost | LCS = (Annual EnergySavings) (P1) | LCS - LCC | |||||
Energy Conservation Measure | $ | $ | year | $ | $ | $ | $ | $ | kBTU/sqft | Tons | |||
Multi Purpose Bldg Base Case | - | - | - | - | - | 40 | - | $4,609 | - | - | - | 16.15 | 20 |
Single pane reflective glazing | 11 | 534 | $3 | $1,602 | 0 | ?? | $1,652 | $3,942 | $667 | $38,553 | $36,901 | 15.94 | 17 |
Double pane clear glazing | 8 | 534 | $2 | $1,068 | 0 | 40 | $1,101 | $4,520 | $89 | $5,144 | $4,043 | 15.12 | 20 |
Double pane reflective glazing | 13 | 534 | $6 | $3,204 | 0 | 40 | $3,303 | $3,786 | $823 | $47,569 | $44,266 | 14.56 | 16 |
Double pane spectrally selective glazing | 15 | 534 | $4 | $2,225 | 0 | 40 | $2,294 | $3,694 | $915 | $52,887 | $50,593 | 14.11 | 16 |
Reflective roof | 20 | 13353 | $0 | $0 | 0 | 20 | $0 | $4,484 | $125 | $2,295 | $2,295 | 16.02 | 19 |
Reflective wall | 21 | 9250 | $0 | $0 | 0 | 20 | $0 | $4,559 | $50 | $1,170 | $1,170 | 16.21 | 20 |
2' overhang NSEW | 22 | 1723 | $5 | $8,615 | 0 | 40 | $8,852 | $4,604 | $5 | $289 | $-8,593 | 16.14 | 20 |
4' overhang NSEW | 23 | 2064 | $5 | $10,320 | 0 | 40 | $10,640 | $4,580 | $29 | $1,676 | $-8,964 | 16.08 | 20 |
Shade trees | 24 | 8 trees | $200 | $1,600 | 0 | 30 | $1,650 | $4,322 | $287 | $11,193 | $9,543 | 16.00 | 18 |
R-11 wall insulation | 25 | 9250 | $0.31 | $2,868 | 0 | 40 | $2,956 | $5,670 | $-1,061 | $-61,326 | $-64,282 | 15.46 | 20 |
R-19 roof insulation | 26 | 9250 | $0.31 | $2,868 | 0 | 40 | $2,956 | $5,400 | $-791 | $-45,720 | $-48676 | 16.31 | 20 |
R-30 roof insulation | 28 | 13353 | $0.31 | $4,139 | 0 | 40 | $4,268 | $5,784 | $-1,175 | $-67,915 | $-72,183 | 15.87 | 20 |
Variable speed circulation pump for chiller | 39 | 1 pump | $3000 | $3,000 | 0 | 15 | $3,093 | $5,500 | $-891 | $-14,880 | $-17,973 | 15.57 | 20 |
Non-optimal orientation | 1 | 1 | $0 | $0 | 0 | 40 | $0 | $4,835 | $-226 | $-13,603 | $-13,603 | 17.94 | 21 |
F34, T12, magnetic ballast, open diffuser, parabolic troffer with reflector | 31 | 359 fixts | $15 | $5,385 | 0 | 15 | $5,552 | $4,596 | $13 | $217 | $-5,335 | 16.12 | 22 |
F34, T12, magnetic ballast, open diffuser, parabolic troffer | 32 | 359 fixts | $8 | $2,872 | 0 | 15 | $2,961 | $4,460 | $149 | $2,488 | $-473 | 15.75 | 20 |
F32, T8, electronic ballast, open diffuser, parabolic troffer | 33 | 359 fixts | $24 | $8,706 | 0 | 15 | $8,976 | $4,399 | $210 | $3,507 | $-5,469 | 15.58 | 20 |
LED exit signs | 34 | 8 signs | $40 | $320 | 0 | 40 | $330 | $5,644 | $-1,035 | $-10,971 | $-11,301 | 17.94 | 21 |
Screw chiller | 36 | 1 chlr | $2400 | $2,400 | 0 | 15 | $2,474 | $3,566 | $1,043 | $17,418 | $14,944 | 12.47 | 20 |
Enthalpy Economizer | 49 | 1 ecnzr | $2400 | $2,400 | 0 | 15 | $2,474 | $5,672 | $-1,063 | $-17,752 | $-20,227 | 16.12 | 20 |
Optimal Start (Energy Management System | 48 | 1 EMS | $5000 | $5,000 | 0 | 15 | $5,155 | $5,466 | $-857 | $14,312 | $-19,467 | 14.91 | 20 |
Enthalpy Recovery System (TERS) for 5 cfm | 46 | per ton (20) | $400 | $8,000 | 0.05 | 15 | $8,470 | $5,018 | $-409 | $-6,830 | $-15,300 | 14.86 | 17 |
Enthalpy Recovery System (TERS) for 15 cfm [Compared to ventilation rate = 15 cfm/person] | 47 | per ton (20) | $400 | $8,000 | 0.5 | 15 | $8,470 | $4,607 | $2 | $33 | $-8,436 | 16.13 | 20 |
Table 6. Economic Optimization Analysis - Classroom Building
Run # | Units | Cost/ unit | First Cost | Oper andMaint | Life of ECM | Life Cycle Cost | Annual EnergyCost | Annual EnergySavings | Life Cycle Savings | Net Savings | Energy UseIntensity | Estimated CoolingCapacity | |
Formula | sqft unlessnoted | FC | O&M | LCC = (FC) (P2) +(FC) (P3) (OM) | Electric cost+ Gas cost | Base Case energy cost - ECM energy cost | LCS = (Annual EnergySavings)(P1) | LCS - LCC | |||||
Energy Conservation Measure | $ | $ | year | $ | $ | $ | $ | $ | kBTU/sqft | Tons | |||
Classroom Building Base Case | - | - | - | - | - | 40 | - | $15,481 | - | $0 | - | 44 | 46 |
Double pane spectrally selective glazing | 15 | 2304 | $4 | $9,600 | 0 | 40 | $9,898 | $14,409 | $1,072 | $61,961 | $52,063 | 40 | 41 |
Screw Chiller | 36 | 1 chlr | $2400 | $720 | 0 | 15 | $2,474 | $12,686 | $2,795 | $46,674 | $44,200 | 35 | 47 |
F32, T8, electronic ballast, open diffuser, parabolic troffer | 33 | 400 fixts | $24 | $3,200 | 0 | 15 | $10,001 | $13,854 | $1,627 | $27,167 | $17,166 | 39 | 44 |
Occupancy sensors | 61 | 12 snsrs | $60 | $480 | 0 | 15 | $742 | $14,492 | $989 | $16,515 | $15,773 | 41 | 45 |
Reflective roof | 20 | 14835 | $0 | $0 | 0 | 20 | $0 | $14,941 | $540 | $12,641 | $12,641 | 42 | 46 |
Electronic dimming ballast | 7 | 400 bllsts | $14 | $480 | 0 | 20 | $5,567 | $8,810 | $586 | $9,781 | $4,213 | 26 | 36 |
LED exit signs | 34 | 12 signs | $40 | $9,700 | 0 | 40 | $495 | $15,291 | $190 | $10,991 | $10,496 | 43 | 46 |
Reflective Wall | 21 | 6816 | $0 | $0 | 0 | 20 | $0 | $15389 | $92 | $2,151 | $2,151 | 43 | 46 |

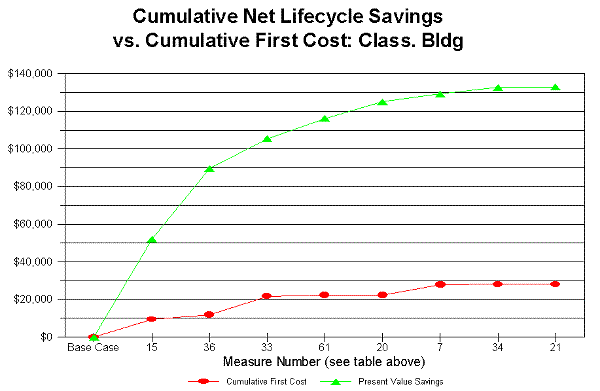

Figure 48
Table 7. Economic Optimization Analysis - Administration Building
Run # | Units | Cost/ unit | First Cost | Oper andMaint | Life of ECM | Life Cycle Cost | Annual EnergyCost | Annual EnergySavings | Life Cycle Savings | Net Savings | Energy UseIntensity | Estimated CoolingCapacity | |
Formula | sq. ft. unlessnoted | FC | O&M | LCC = (FC) (P2) +(FC) (P3) (OM) | Electric cost+ Gas cost | Base Case energy cost - ECM energy cost | LCS = (Annual EnergySavings) (P1) | LCS - LCC | |||||
Energy Conservation Measure | $ | $ | year | $ | $ | $ | $ | $ | kBTU/sqft | Tons | |||
Administration Bldg Base Case | - | - | - | - | - | - | $0 | $9,735 | - | - | - | 42 | 25 |
Double pane spectrally selective glazing | 15 | 629.6 | $4 | $2,623 | 0 | 40 | $2,708 | $9,014 | $721 | $41,651 | $38,946 | 40 | 22 |
Screw Chiller | 36 | 1 chlr | $2400 | $2,400 | 0 | 15 | $2,474 | $8,656 | $1,079 | $18,016 | $15,541 | 37 | 25 |
F32, T8, electronic ballast, open diffuser, parabolic troffer | 33 | 270 fixts | $24 | $6,548 | 0 | 15 | $6,750 | $8,624 | $1,110 | $18,544 | $11,794 | 38 | 23 |
Occupancy sensors | 61 | 12 snsrs | $60 | $720 | 0 | 15 | $742 | $9,338 | $397 | $6,632 | $5,890 | 41 | 25 |
Reflective roof | 20 | 10017 | $0 | $0 | 0 | 20 | $0 | $9,300 | $435 | $10,185 | $10,185 | 41 | 25 |
Electronic dimming ballast | 7 | 270 bllsts | $25 | $3,645 | 0 | $3,758 | $5,700 | $330 | $5,508 | $1,750 | 26 | 18 | |
LED exit signs | 34 | 12 signs | $40 | $480 | 0 | 40 | $495 | $9,668 | $67 | $3,871 | $3,376 | 42 | 25 |
Reflective Wall | 21 | 5328 | $0 | $0 | 0 | 20 | $0 | $9,664 | $71 | $1,654 | $1,654 | 42 | 25 |

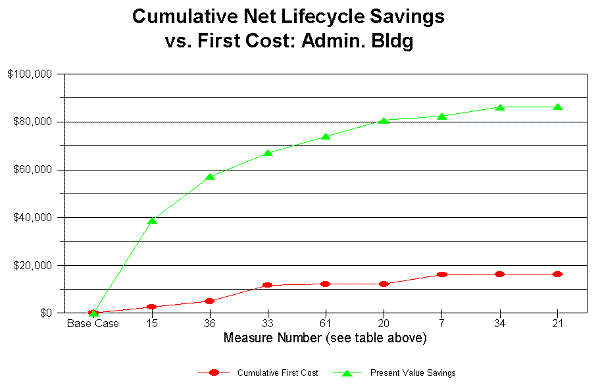

Figure 49
Table 8. Economic Optimization Analysis - Multi Purpose Building
Run # | Units | Cost/ unit | First Cost | Oper andMaint | Life of ECM | Life Cycle Cost | Annual EnergyCost | Annual EnergySavings | Life Cycle Savings | Net Savings | Energy UseIntensity | Estimated CoolingCapacity | |
Formula | sqft unlessnoted | FC | O&M | LCC = (FC) (P2) +(FC) (P3) (OM) | Electric cost+ Gas cost | Base Case energy cost - ECM energy cost | LCS = (Annual EnergySavings) (P1) | LCS - LCC | |||||
Energy Conservation Measure | $ | $ | year | $ | $ | $ | $ | $ | kBTU/sqft | Tons | |||
Multi Purpose Bldg Base Case | - | - | - | - | - | - | - | $4,609 | - | - | - | 16.15 | 20 |
Double pane spectrally selective glazing | 15 | 534 | $4 | $2,225 | 0 | 40 | $2,294 | $3,694 | $915 | $52,887 | $50,593 | 14.11 | 16 |
Screw Chiller | 36 | 1 chlr | $2400 | $2,400 | 0 | 15 | $2,474 | $3,566 | $1,043 | $17,418 | $14,944 | 12.47 | 20 |
Reflective roof | 20 | 13353 | $0 | $0 | 0 | 20 | $0 | $4,484 | $125 | $2,295 | $2,295 | 16.02 | 19 |
R-19 roof insulation | 26 | 9250 | $0.31 | $2,868 | 0 | 40 | $2,956 | $2,247 | $58 | $3,378 | $421 | 11.86 | 15 |

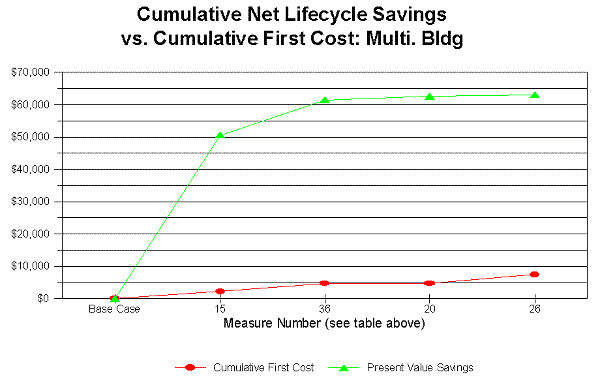

Figure 50
