Cool Roof Study Images

(Back to Report)

Street scene
Street scene showing the three closest homes (from left: white "barrel"
s-tile (RWB), terra cotta s-tile (RTB) and white metal (RWM)).

Project Meterological Station
Project Meterological Station

White shingle roof home
White shingle roof home undergoing
blower door test
White s-tile roof home
White s-tile roof home
White metal roof home
White metal roof home
(25% measured savings)

Terra cotta s-tile roof home
Terra cotta s-tile roof home
Roof with sealed attic under construction
Roof with sealed attic under construction

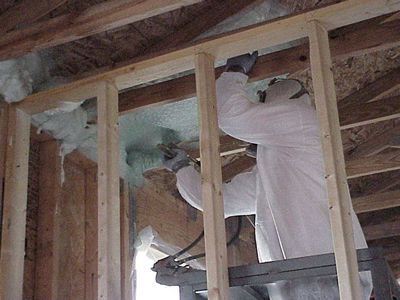

R-19 deck insulation
R-19 deck insulation being sprayed into sealed attic home
(produced 9% savings compared to control home)
