PV Project Thermography - Control Home (5/7/98)

Missing Insulation

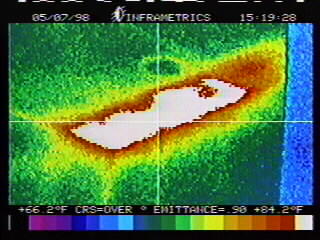

This set of photos shows a common problem in the Control Home: missing insulation. set of pictures, taken above the shower in the master bathroom, show missing insulation. The recessed can light is visible in the IR photograph immediately above the missing insulation.

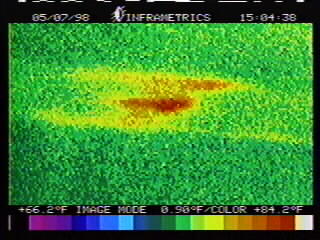

The bottom photograph shows a small patch of missing and/or thin insulation in the living room ceiling.

The temperature range is from 66°F (darkest colors) to 84°F (lightest colors).

Master Bathroom

Figure 1.
Figure 1a.



Living Room

Figure 2.
no photo available
